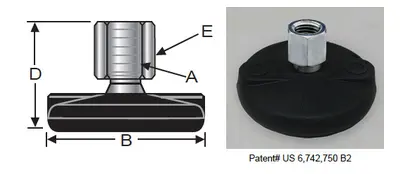

Steel PolyMount™ 5” Dia Base Tapped Style, Metric
Click image to enlarge
| Steel P/N |
Stainless P/N |
Thread (A) |
Base Dia (B) |
Total Height (D) |
Max Load (kg) |
Hex Size (E) |
Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|
| BMNYLC5-T | BSMNYLC5-T | M16 | 127 | 76 | 4545 | 27 | 1.12 |
| BMNYLD5-T | BSMNYLD5-T | M20 | 127 | 76 | 4545 | 27 | 1.12 |
| BMNYLE5-T | BSMNYLE5-T | M24 | 127 | 76 | 4545 | 35 | 1.12 |
| BMNYLF5-T | BSMNYLF5-T | M30 | 127 | 76 | 4545 | 35 | 1.12 |
