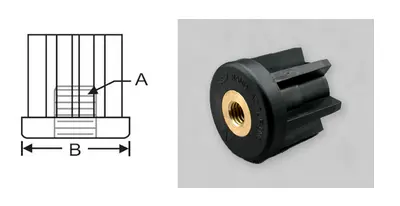

Threaded Tube Ends (Round, Brass Insert, Metric)

Name: Superior Components, Inc.
Address: 12409 S Industrial Dr E, Plainfield, 60585
Telephone: (815) 254-2313
Price range: $$
Rating: 4.5

Click image to enlarge

S&W	Thread	O.D.	Tube Guage	Tube Outside	Tube Wall	Static Load	Ship Wt
P/N	(A)	(B)	Shape	Dia		(lbs)	(lbs)
TE1-1MA	M10	1.5 dia	16 ga. round	1.5 dia.	.065	1500	0.22
TE1-1MB	M12	1.5 dia	16 ga. round	1.5 dia.	.065	1500	0.22
TE1-1MC	M16	1.5 dia	16 ga. round	1.5 dia.	.065	1500	0.22
TE1-1MD	M20	1.5 dia	16 ga. round	1.5 dia.	.065	1500	0.22
TE1-10MA	M10	2.0 dia	2.0″ Sch 10 pipe	1.9 dia.	.109	2000	0.30
TE1-10MB	M12	2.0 dia	2.0″ Sch 10 pipe	1.9 dia.	.109	2000	0.30
TE1-10MC	M16	2.0 dia	2.0″ Sch 10 pipe	1.9 dia.	.109	2000	0.30
TE1-10MD	M20	2.0 dia	2.0″ Sch 10 pipe	1.9 dia.	.109	2000	0.30
TE2-2MA	M10	2.0 dia	16 ga. round	2.0 dia.	.065	2000	0.30
TE2-2MB	M12	2.0 dia	16 ga. round	2.0 dia.	.065	2000	0.30
TE2-2MC	M16	2.0 dia	16 ga. round	2.0 dia.	.065	2000	0.30
TE2-2MD	M20	2.0 dia	16 ga. round	2.0 dia.	.065	2000	0.30
