Threaded Tube Ends (Square, Brass Insert, Metric)

Name: Superior Components, Inc.
Address: 12409 S Industrial Dr E, Plainfield, 60585
Telephone: (815) 254-2313
Price range: $$
Rating: 4.5

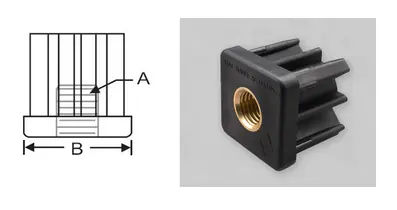

Click image to enlarge

S&W	Thread	O.D.	Tube Guage	Tube Outside	Tube Wall	Static Load	Ship Wt
P/N	(A)	(B)	Shape	Dia		(lbs)	(lbs)
TE1-2MA	M10	1.5 sq.	16 ga. square	1.5 sq.	.065	1500	0.22
TE1-2MB	M12	1.5 sq.	16 ga. square	1.5 sq.	.065	1500	0.22
TE1-2MC	M16	1.5 sq.	16 ga. square	1.5 sq.	.065	1500	0.22
TE1-2MD	M20	1.5 sq.	16 ga. square	1.5 sq.	.065	1500	0.22
TE1-3MA	M10	1.5 sq.	11 ga. square	1.5 sq.	.120	1500	0.22
TE1-3MB	M12	1.5 sq.	11 ga. square	1.5 sq.	.120	1500	0.22
TE1-3MC	M16	1.5 sq.	11 ga. square	1.5 sq.	.120	1500	0.22
TE1-3MD	M20	1.5 sq.	11 ga. square	1.5 sq.	.120	1500	0.22
TE2-1MA	M10	2.0 sq.	16 ga. square	2.0 sq.	.065	2000	0.30
TE2-1MB	M12	2.0 sq.	16 ga. square	2.0 sq.	.065	2000	0.30
TE2-1MC	M16	2.0 sq.	16 ga. square	2.0 sq.	.065	2000	0.30
TE2-1MD	M20	2.0 sq.	16 ga. square	2.0 sq.	.065	2000	0.30
TE2-3MA	M10	2.0 sq.	11-12 ga. square	2.0 sq.	.109/.120	2000	0.30
TE2-3MB	M12	2.0 sq.	11-12 ga. square	2.0 sq.	.109/.120	2000	0.30
TE2-3MC	M16	2.0 sq.	11-12 ga. square	2.0 sq.	.109/.120	2000	0.30
TE2-3MD	M20	2.0 sq.	11-12 ga. square	2.0 sq.	.109/.120	2000	0.30
